Arch Bridge

---

An arch bridge is one of the oldest types of bridges, with examples dating back to ancient civilizations. The arch bridge uses a curved, semi-circular structure to span a physical obstacle such as a river or valley. The arch is an incredibly strong and efficient structural form that has been used in bridge construction for thousands of years.

The key principle of an arch bridge is that the weight of the bridge and any traffic on it is carried outward along the curve of the arch to supports (called abutments) at each end. These supports must be strong and well-anchored to resist the outward thrust of the arch. The arch shape naturally distributes the load, making it possible to span significant distances without intermediate supports.

Arch bridges can be constructed from various materials including stone, brick, concrete, steel, or timber. Historic stone arch bridges, some over 2,000 years old, still stand today as testament to the durability of this design. Modern arch bridges often use reinforced concrete or steel and can span up to 552 meters, as demonstrated by the Chaotianmen Bridge in China.

The deck of an arch bridge can be positioned above the arch (deck arch), below the arch (through arch), or at the level of the arch supports. Each configuration has different advantages depending on the site requirements and aesthetic preferences.

Lift Bridge

---

A lift bridge (or vertical-lift bridge) is a type of movable bridge in which the bridge deck moves vertically upward to allow ships to pass beneath it. The deck is suspended from towers at each end and is raised using counterweights, making the operation energy-efficient. When raised, the entire center span lifts as a single rigid section.

The lifting mechanism typically uses steel cables or chains connected to counterweights that balance most of the deck's weight. This means that only the difference between the deck weight and counterweight needs to be overcome by the motors, making the bridge relatively easy to operate. Electric motors drive the system, though some older bridges used steam or hydraulic power.

Lift bridges offer several advantages: they provide unlimited horizontal clearance (the waterway width), and they can be raised to different heights depending on the size of passing vessels. They're more efficient than bascule bridges for heavier, longer spans. However, they require tall towers and have a slower operating time compared to other movable bridge types.

Notable examples include the Arthur Kill Vertical Lift Bridge (the longest lift bridge in the world at 558 feet), the Tower Bridge in Sacramento, and the Duluth Aerial Lift Bridge in Minnesota. These bridges are particularly common in industrial port areas and on railway lines where heavy freight trains need to cross busy shipping channels.

Opening Bridge

---

A bascule bridge (from the French word for "seesaw") is a type of movable bridge with one or two leaves that rotate upward on a horizontal axis. When a ship needs to pass, the roadway tilts upward, pivoting around a hinge point, much like a drawbridge. The name "opening bridge" reflects the distinctive way these bridges open by lifting their spans.

Bascule bridges can have a single leaf (one side opens) or double leaves (both sides open from a central point). The rotating spans are counterbalanced by large concrete or metal weights to make the bridge easier to operate. Electric or hydraulic motors provide the power to overcome the remaining imbalance and lift the spans.

These bridges are popular in urban areas because they can be built relatively low, don't require tall towers like lift bridges, and operate quickly — typically opening in just 1–3 minutes. They're ideal for locations where there's frequent but not constant ship traffic. The downside is that they have limited span length compared to other movable bridge types.

Famous examples include London's Tower Bridge (the most iconic bascule bridge in the world), Chicago's numerous bascule bridges over the Chicago River, and the Van Buren Street Bridge. The design allows cities to maintain low-level crossings over waterways while still accommodating maritime traffic when needed.

Suspension Bridge

---

A suspension bridge is a type of bridge in which the deck (the load-bearing portion) is hung below suspension cables on vertical suspenders. The first modern examples of this type of bridge were built in the early 1800s. These bridges are characterized by their distinctive cables that arc between towers, creating an elegant and efficient structure capable of spanning great distances.

The main cables pass over tall towers and are anchored at each end of the bridge. The weight of the bridge deck is transferred through vertical suspender cables to the main cables, which then transfer the load to the towers and finally to the anchorages embedded in the ground. This system allows suspension bridges to span much longer distances than other types of bridges.

Famous examples include the Golden Gate Bridge in San Francisco (1,280 meters main span), the Akashi Kaikyo Bridge in Japan (1,991 meters — the world's longest), and the Brooklyn Bridge in New York. Suspension bridges are ideal for spanning bodies of water, deep valleys, or other obstacles where building support structures in the middle would be difficult or impossible.

The design requires careful engineering to account for wind loads, earthquakes, and the expansion and contraction of materials with temperature changes. Modern suspension bridges use high-strength steel cables and sophisticated computer modeling to ensure safety and stability.

Swing Bridge

---

A swing bridge is a movable bridge that rotates horizontally around a central pivot point to open a waterway for passing ships and boats. When the bridge needs to open, the entire span rotates 90 degrees to align parallel with the waterway, allowing vessels to pass on either side of the central pier.

The rotation mechanism is typically powered by electric motors, though some older swing bridges were operated manually or by steam power. The bridge is balanced on a central pivot, which distributes the weight evenly and makes rotation relatively easy despite the massive weight of the structure. The pivot point often sits on a pier in the middle of the waterway.

Swing bridges were particularly popular in the late 19th and early 20th centuries for railway and road crossings over navigable waterways. They offer advantages over other movable bridge types: they don't require high vertical clearance like lift bridges, and they can span wider waterways than bascule bridges. However, they do require space for the bridge to swing into, and the central pivot pier can be an obstacle to navigation.

Modern examples include the Pelham Bay Park Railway Bridge in New York and the Great Belt Bridge in Denmark. Some swing bridges are designed to rotate only when needed, while others are permanently aligned with the waterway and only close for land traffic.

Train

---

A high-speed train is a type of rail transport that operates significantly faster than traditional rail, typically exceeding 200 km/h (124 mph) in regular service. These trains use specially engineered tracks with gentle curves, advanced bogie (wheel assembly) systems, and aerodynamically shaped carriages to achieve high speeds safely and efficiently.

High-speed trains are electrically powered, drawing current from overhead catenary wires. The trains are streamlined to minimise air resistance, and sophisticated onboard computer systems manage acceleration, braking, and safety. Some systems — such as Japan's Shinkansen — use fully dedicated tracks separated from conventional rail to maximise both speed and safety.

The engineering behind high-speed rail spans aerodynamics, electrical engineering, materials science, and civil engineering for the track infrastructure. Notable systems include Japan's Shinkansen (in service since 1964), France's TGV, China's CRH network (the world's largest high-speed network), and Spain's AVE. High-speed rail is widely regarded as one of the most energy-efficient forms of long-distance mass transport.

Key engineering challenges include managing pressure waves when trains enter tunnels, maintaining precise track geometry to prevent vibration at speed, and designing pantograph systems that maintain reliable contact with overhead wires at over 300 km/h.

Cargo Ship

---

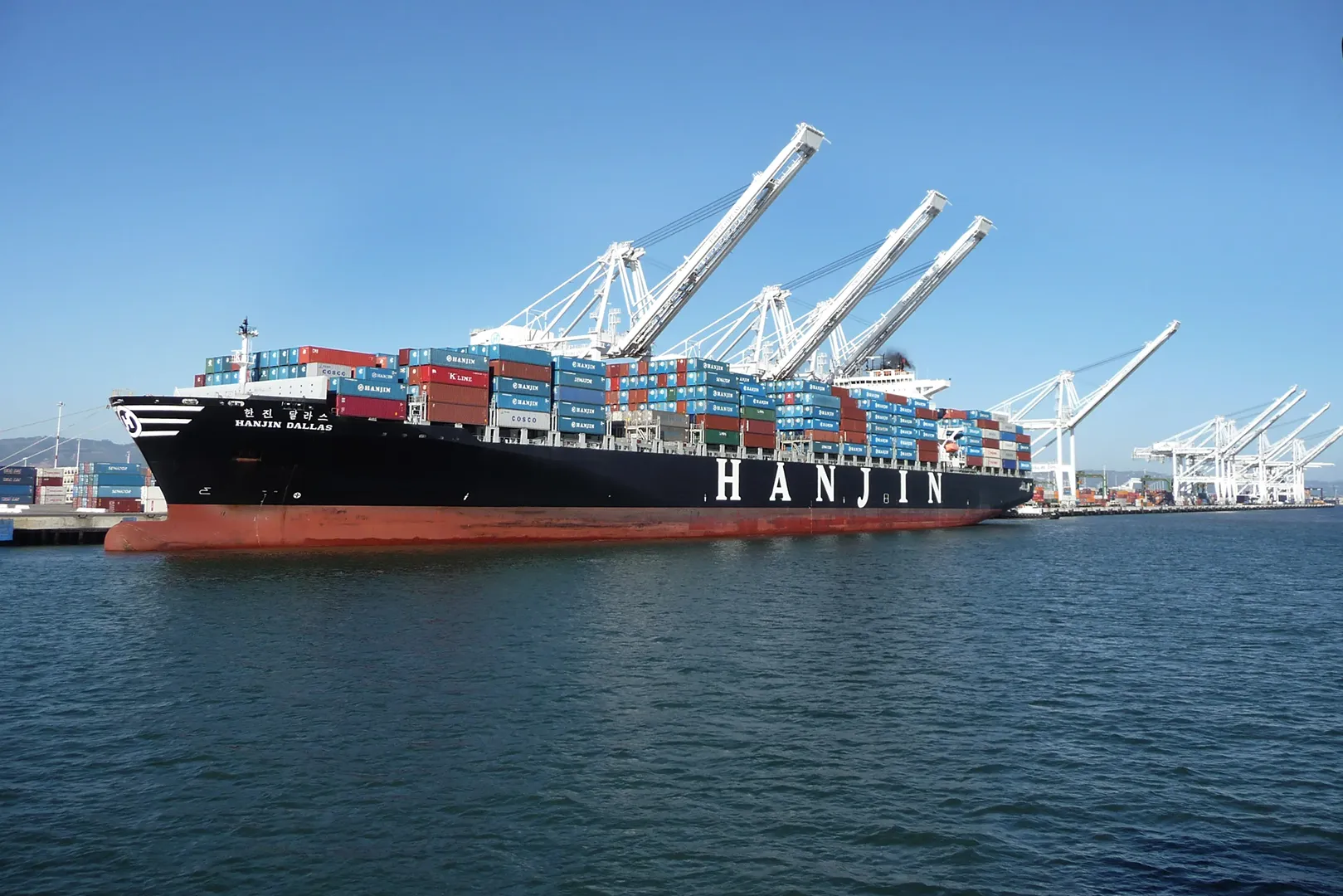

A container ship is a cargo vessel that transports goods in standardised intermodal containers — steel boxes (typically 20 or 40 feet long) that can be transferred seamlessly between ships, trucks, and trains without unloading their contents. Container shipping revolutionised global trade from the 1950s, dramatically cutting cargo handling costs and transit times.

Modern Ultra Large Container Vessels (ULCVs) can carry more than 24,000 TEU (twenty-foot equivalent units). They are powered by massive slow-speed two-stroke diesel engines turning a single large propeller, and are fitted with sophisticated navigation systems, ballast water management, and exhaust gas cleaning (scrubber) systems to meet international environmental regulations.

The engineering of a container ship spans naval architecture (hull design for stability and fuel efficiency), marine engineering (propulsion and power systems), structural engineering (ensuring the hull withstands ocean stresses and container stacking loads), and electronic systems engineering. About 90% of world trade is carried by sea.

Engineers continue to develop greener propulsion solutions including LNG (liquefied natural gas), ammonia, and hydrogen fuel systems to reduce the shipping industry's carbon footprint, which accounts for approximately 2.5% of global greenhouse gas emissions.

Helicopter

---

A helicopter is a rotary-wing aircraft that generates both lift and thrust through one or more spinning rotor blades. Unlike fixed-wing aircraft, helicopters can take off and land vertically, hover in a fixed position, and fly in any direction — forward, backward, or sideways. These unique capabilities make helicopters irreplaceable for tasks that no other vehicle can perform.

The main rotor provides lift (keeping the helicopter airborne) and thrust (propelling it in any direction). As the rotor spins, it creates a torque reaction that would cause the fuselage to spin in the opposite direction; the tail rotor counteracts this by generating a sideways force. The pilot controls the helicopter using three main inputs: the cyclic stick (tilts the rotor disc to move horizontally), the collective lever (changes overall blade pitch to control altitude), and foot pedals (control the tail rotor and yaw).

Helicopters are powered by turboshaft engines — a form of gas turbine that converts combustion energy into shaft power to drive the rotors. Key engineering challenges include rotor blade design (using composite materials for strength and low weight), vibration damping systems, noise reduction, and autorotation safety systems that allow a safe controlled descent if the engine fails.

Helicopters serve critical roles in emergency medical services, search and rescue, military operations, offshore oil platform logistics, firefighting, and aerial surveying. Modern developments include fly-by-wire control systems, composite airframes, and hybrid-electric powertrains aimed at reducing fuel consumption and noise.

Bus

---

A bus is a large road vehicle designed to carry many passengers, typically along a fixed route on a regular timetable. Buses are the most widespread form of public transport in the world, serving cities, towns, and rural areas alike. Modern buses come in many configurations: single-deck, double-deck, articulated (bendy bus), and increasingly as zero-emission electric or hydrogen fuel-cell variants.

The engineering of a bus involves designing a strong chassis and body capable of carrying large passenger loads safely, an efficient drivetrain (diesel, hybrid, electric, or hydrogen), accessible low-floor entry systems for passengers with mobility needs, and safety technology such as electronic stability control and automatic emergency braking.

Bus Rapid Transit (BRT) systems use dedicated lanes and raised station platforms to provide subway-like efficiency using bus technology. Electric buses are growing rapidly in number due to their zero tailpipe emissions and lower running costs. Cities such as Shenzhen, China, operate entirely electric bus fleets of thousands of vehicles.

Buses play a critical role in reducing urban congestion and carbon emissions — a single full bus can remove up to 40 cars from the road, making bus engineering an important part of sustainable city planning. Future developments include autonomous bus technology and smart connected transit systems that adjust routes in real time based on passenger demand.

Internal Combustion Engine

---

The typical car engine shown here is a 4-stroke petrol engine. The chemical energy from burning petrol causes an explosion inside the engine that forces a piston to slide down inside a cylinder. The piston is connected to a crankshaft, and this mechanical energy is transferred through a gearbox to the drive wheels of the car. The four strokes of the engine are:

• Inlet - piston moves down and sucks in air and petrol (from carburettor or fuel injector)
• Compression – piston moves up and compresses the gas mixture
• Power – the spark ignites the mixture and the explosion forces the piston down
• Exhaust – the piston rises and forces the burnt gases into the exhaust manifold

One piston/cylinder on its own cannot work well. Four cylinders arranged so that one at a time is on a power stroke, provide a smoother and more continuous power output.

A piston engine is incredibly responsive, and more fuel-efficient over a wide power range. This makes piston engines ideal for use in vehicles and explains why, despite poor fuel efficiency and exhaust gases, they are still in use after 125 years.

Substantial improvements in fuel economy have been achieved with sophisticated electronic controls, sensors and direct fuel injection. The toxicity of exhaust gases has been reduced with the introduction of catalytic converters.

A diesel-fuelled engine works in a similar way. It is generally more fuel-efficient but has more toxic exhaust gases. Its performance favours specific applications, typically heavy-duty.

Braking System

---

A good braking system is essential for stopping your vehicle. Pressing the brake pedal, which is attached via levers to the master cylinder, applies pressure to brake fluid within a network of hydraulic pipes connected to actuators on the actual brakes at each wheel. The more force a driver applies to the brake pedal, the higher the stopping force that is applied at the wheels. The master cylinder has a reservoir that keeps the system full of brake fluid.

Disc brakes use pads lined with friction material to grab a steel disc that is rotating with one of the road wheels, whereas drum brakes have brake 'shoes', also lined with friction material, that are pushed against the inside of a rotating drum inside a road wheel.

Front brakes play a greater part in stopping a car than the rear ones because braking throws the car weight forward on to the front wheels. Many vehicles therefore have disc brakes at the front and drum brakes at the rear. The handbrake, which is also considered an emergency brake, is usually connected to the rear brakes by steel cables.

The force applied to the brakes can be boosted by a 'servo' that uses either engine vacuum or hydraulic pressure to amplify the force from the master cylinder, so the driver does not have to push the pedal as hard.

Most modern vehicles are fitted with an electronic Anti-lock Brake System (ABS) to prevent skidding. The ABS can detect any wheel skidding through electronic sensors and adjust the braking force on any wheel using high-pressure pumps, allowing maximum braking force during an emergency stop.

Steering System

---

A steering system is required to allow the driver to aim the vehicle in the direction of travel by turning the front wheels. The steering wheel in the car is connected to the two front wheels by a combination of gears and levers. To improve the accuracy of the mechanism and to reduce the effort required, it takes a significant rotation of the steering wheel to make a small change in the angle of direction of the front wheels.

The suspension system is cleverly designed to allow each wheel to move up and down without changing the steering angle. Therefore most of the steering joints have to be 'knuckle' or ball-joints.

The system must also ensure that, when cornering, the inner front wheel — which has to travel around a tighter curve than the outer one — becomes more sharply angled. If the steering system gets worn or out of alignment, the tyres will wear out much faster. See the suspension system for more details on caster and camber angles.

Most modern cars are fitted with a hydraulic pump to increase the force applied into the steering mechanism and onto the wheels. The hydraulic pump system reduces the effort that is required to turn the steering wheel.

Car Exhaust System

---

The exhaust system is the piping and devices that the burnt gases from the engine travel through before discharging into fresh air. Depending on the system design, the exhaust gas will flow through the following:

• Cylinder head and exhaust manifold on the engine
• A turbocharger to increase engine power
• A catalytic converter to reduce air pollution
• A silencer/muffler (USA) to reduce noise

An exhaust pipe is designed to carry hot, toxic and noxious gases (including carbon monoxide and oxides of nitrogen) away from the occupants of the car and dilute them into the general atmosphere. The pipe must be heat-resistant and kept away from anything that can burn or be damaged by heat. Most countries have regulations setting the limits on gas concentrations in the final exhaust.

Turbocharger: recovers energy from the exhaust gas to drive a small gas turbine, coupled to a gas compressor, to boost the pressure of the air going into the engine and improve its power and efficiency.

Catalytic converter: contains a fine honeycomb mesh with a large surface area, plated with platinum/palladium/rhodium, that converts some of the poisonous exhaust gases into less harmful gases.

Silencer/Muffler: a box with sound-absorbing material and baffles to reduce the noise of the final exhaust to atmosphere.

Oxygen (O2) sensors: in modern cars, by monitoring the exhaust gases, the fuel injection system can be finely tuned to optimise combustion and minimise harmful gases in the exhaust.

Car Aircon System

---

The air conditioning system operates similarly to a refrigerator, using a compressor and a refrigerant gas to remove heat from the air inside the car and release it outside the vehicle. The system has six main components:

· The refrigerant is the gas/liquid that transports the heat and also carries the oil for lubricating the compressor and expansion valve. Common refrigerants used in vehicles are R1234yf, R134a and R12. Some are being phased out for environmental reasons (global warming).

· The compressor draws low-pressure refrigerant gas from the cold evaporator, compresses it and pumps it to the outside condenser radiator. The compressor is driven by a belt off the car's engine and uses an electro-magnetic clutch to engage/disengage.

· The condenser is the outside radiator where the hot refrigerant gas cools down and condenses back to a liquid.

· The expansion valve (or orifice tube) controls the flow of refrigerant liquid from the high-pressure condenser back to the low-pressure evaporator — this is where the refrigerant cools down.

· The evaporator is the cold radiator inside the car that cools the air blown across it by a fan. Here the refrigerant absorbs heat and boils back to a gas.

· The receiver dryer or accumulator is a small storage vessel containing a desiccant substance to remove moisture from the refrigerant.

For heating the air inside the car, there is another radiator that uses hot water from the engine's cooling system. In modern cars, the control panel allows highly automated temperature management.
